Specially designed for fast and accurate diagnosis of fault in common rail systems. It represents the state of art technology for measuring the pressure on common rail systems.
Technical Specifications:
*Sensor type: ratiometric
*Measuring range: 0-2000 bar / 0-29000 psi
*Resolution: 1 bar
*Display: Backlit 64x128 pixels graphic LCD
*Sensor accuracy: +/- 1%
*Overpressure limit: 3000 bar
*Data transmission interface: wireless module
*Working Temperature:0 to 60 (32 to 140)
*Storage Temperature:-20 to 70 (-4 to 158)
*Dimensions:190*90*36mm

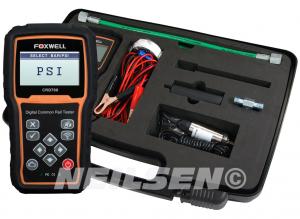

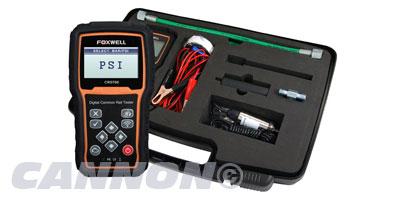

Kit Includes:
*Tester
*User’s guide
*Blow molding case
*1 flexible high pressure hoses M12*1.5/ M12*1.5
*1 flexible high pressure hoses M12*1.5/ M14*1.5
*1 metal tube M12*1.5/ M12*1.5
*1 high pressure “T” adaptor
*1 high pressure sensor
*1 vehicle battery clip
*1 2-pin connection cable
*1 wireless data receiver
Checks high-pressure pump of common rail systems
Dynamic test: measures actual pressure in common rail circuit with engine running
Maximum pressure test: checks high-pressure pump and compares with manufacturer's values
Stores maximum pressure value
Environmental pressure adjustment
Kit includes 2 high-pressure connectors (500 mm)
Wireless data transmitter sends test results to computer for review and printing
Automatic engine start from tester
Extremely easy to use with user friendly menu
