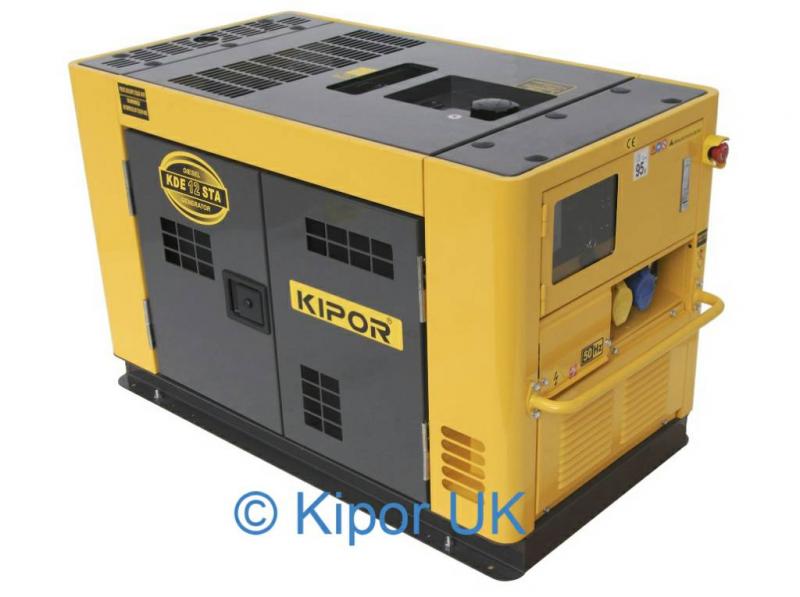

KDE 19STA3

In Stock
Price: £3795.00 Including VAT
High efficiency and low noise of the direct injection combustion chamber The air intake and outlet pipe is separated, which avoids the turbulence, resulted in more smooth air cycling Thinner insulator of KIPOR silent generator which have stronger ability of resisting noise
Wishlist
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty


Product Description

* High efficiency and low noise of the direct injection combustion chamber
* The air intake and outlet pipe is separated, which avoids the turbulence, resulted in more smooth air cycling
* Thinner insulator of KIPOR silent generator which have stronger ability of resisting noise

FEATURES

Unique & Compact Structure
The generator set has a compact and unique design. The exhaust is ducted out from the top cover facilitating installation. The layout of the oil and coolant inlet has been redesigned to permit easier access for service.

Low Noise Running
The Kipor super silent generator series offer unparalleled low noise levels. Kipor applies a unique double air inlet and outlet design. The generator is equipped with a built-in large sound attenuating muffler and additional sound insulation liners to limit noise.

Digital Control Panel
The DC generators can be paralleled together with two or more, without limitation on model or number. Appropriate power capacity and number of paralleling units can be selected to meet different loads.

High Quality Power Output
The improved AVR (Automatic Voltage Regulator) limits voltage fluctuation to a very low level and ensures smooth and steady output. Additionally, the AVR features built-in overload protection and will automatically shut off the output at 110% of rated load.

Competitive Economic Advantage
The high efficiency combustion system is designed to reduce fuel consumption and operation costs.

ATS (Automatic Transfer Switch)
ATS continually monitors utility power and voltage/frequency fall below acceptable levels. It commands the generator to start automatically and connect generator power to the intended load. Once proper utility power is restored, the ATS stops the generator and reconnects utility power. The ATS has been designed to be installed either inside or outside the generator set.

Model

KDE19STA3

Rated frequency(Hz)

50 60

Rated output(kVA)

16.25 19

Max.output(kVA)

18.75 21

Rated voltage(V)

230/400 240/416

Rated current(A)

23.5 26.4

Rated speed(r/min)

3000 3600

Generator model

KTS19

Pole No.

2

Loop mode

Three-phase, four-line, Y-connection

Excitation mode

Brushless self-excitation and constant voltage(AVR)

Power factor(cosΦ)

0.8(Lag)

Insulation grade

F

Engine model

KM376AG

Engine type

three-cylinder, in-lined, four-stroke, swirl chamber, water-cooled

BoreXstroke(mm)

76X77

Total displacement(L)

1.048

Compression ratio

21.5:1

Rated power(kW)

15.3 17.5

Cooling water capacity(engine)(L)

6

Radiator tank(L)

5

Lubricating system

Pressure splashed

Lube oil brand

SAE10W-30,15W-40(above CD grade)

Lube oil capacity(L)

4.8

Starting system

12V Electric starter

Starting motor capacity(V-kW)

12V 1.4kW

Charging generator capacity(V-A)

14V 25A

Battery capacityXNo.(V-Ah)

12V 65Ah

Fuel type

0#(summer), -10#(winter),-35#(chillness)diesel

Fuel consumption(g/kW.h)

≤320

Panel type

Digital panel

Output voltage(V)

230/400 240/416

Receptacle

Two single-phase receptacles

Connection pole

Available

Noise level(zero load-full load)[dB(A)/7m]

72

Structure type

Super silent

Fuel tank capacity (L)

38

Continous running time(hr)

7

Overall dimension(LXWXH)(mm)

1540X845X925   1540X700X810(without wheels)

Dry weight(kg)

442

KS code Spare Name
Description Price
KS0123 12 volt alternator KDE11SS/KDE16SS
12 volt alternator KDE11SS/KDE16SS £102.00
KS0110 Exhaust Valves/Vent KDE19STA
Exhaust Valves/Vent KDE19STA £9.60
KS0113 Inlet valves/Vent KDE19STA
Inlet valves/Vent KDE19STA £9.60
KS0085 Oil Injection Pump Timing Gear KDE19STA
Oil Injection Pump Timing Gear KDE19STA £18.00
KS0088 Injection Pump KDE19STA
Injection Pump KDE19STA £394.99
KS0148 Engine Block Assembly 19STA
Engine Block Assembly 19STA £340.00
KS0067 Head Gasket to fit KDE19STA KDE19STA3
Head Gasket to fit KDE19STA KDE19STA3 £29.94
KS0141 Replacement Wheels 19STA
Replacement Wheels 19STA £18.00
KS0142 19STA 19STA3 12STA 12STA3 Carbon Brush Set
Replacement Brushes 19STA 19STA3 12STA 12STA3 £24.00
KS0063 Oil Switch KDE3500 KDE6700T KDE6700TA
Oil Switch KDE3500 KDE6700T KDE6700TA £24.00
KS0091 Fuel Injector KDE19STA KDE19STA3
Fuel Injector KDE19STA KDE19STA3 £36.00
KS0009 Ignition Switch JK427
Ignition Switch KDE6700T KDE6700TA, KDE6700TA3, KDE12STA KDE12STA3 KDE19STA KDE19STA3 £24.00
KS0107 Valve Shim Bucket KDE19STA KDE19STA3
Valve Shim Bucket KDE19STA KDE19STA3 £18.00
KS0070 Cambelt KDE19STA KDE19STA3
Cambelt KDE19STA KDE19STA3 £28.80
KS0079 Rocker Cover Gasket KDE19STA KDE19STA3
Rocker Cover Gasket KDE19STA KDE19STA3 £21.60
KS0140 Air Filter KDE19STA KDE19STA3
Air Filter KDE19STA KDE19STA3 £24.00
KS0158 Auto Transfer Switch for KDE12STA3 KDE19STA3
Auto Transfer Switch for KDE12STA3 KDE19STA3 £595.00
KS0104 Water pump KDE19STA
Water pump KDE19STA £101.41
KS0121 Starter Motor KDE19STA
Starter Motor KDE19STA £270.00
KS0004 Digital Display Panel KI-MB3(ATS)-D-1
Digital Display Panel £120.00
KS0078 Valve assembly KM376
Valve assembly KM376 £31.20
KS0131 Camshaft assembly KM376
Camshaft assembly KM376 £90.00
KS0198 KDE 19 STA Cylinder head assembly complete
Cylinder head assembly KM376 £360.00
KS0013 ATS Controller KPATS100 KPATS26
ATS Controller KPATS100 KPATS26 £90.00
KS0015 PLY MB3 ATS C Controller
PLY MB3 ATS C Controller £128.70
KS0231 19STA Radiator
19STA Radiator £180.00
KS0222 19STA Fuel Pump Belt Tensioner
Fuel Pump Belt Tensioner £24.00
KS102 Emergency Stop
Emergency stop push switch £24.00
KS0242 KDE 19 STA Oil Filter
Oil filter for KDE 19 STA and KDE 12 STA £18.00
KS0240 KDE 19STA Injection Pipes 3
KDE 19 STA Injection Pipes set of 3 £36.00
KS0233 KDE 19 STA Piston and Rings
Piston and Rings for KDE 19 STA £36.00
KS0245 KDE 19 STA Injection Pump Pulley
KDe 19STA Fuel pump pulley £18.00
KS0137 KDE19STA3 PLY150 3 phase Avr
PLY150 3 phase Avr KDE19STA3 £150.00
