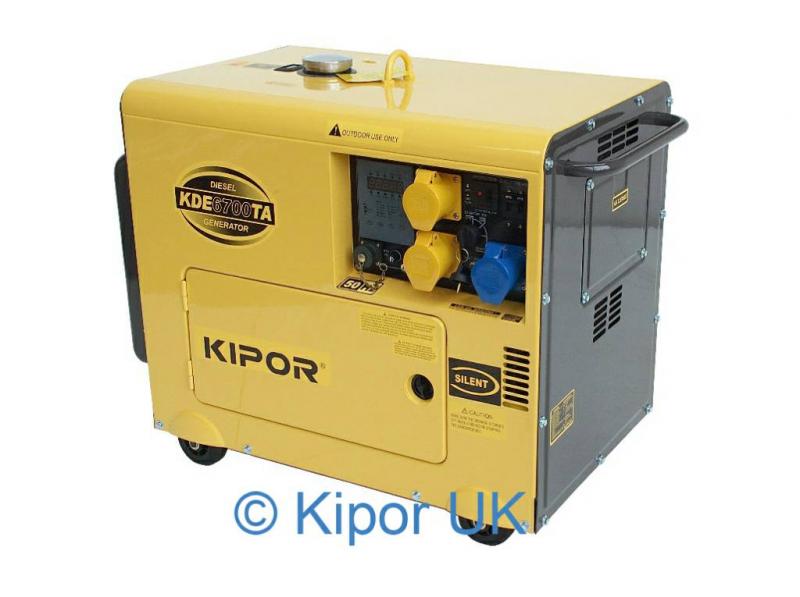

KDE 6700TA

In Stock
Price: £1095.00 Including VAT
A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power. Powerful KM186FAGET diesel engine. Optional electric starter. Low oil pressure alert system shuts down the engine automatically.
Wishlist
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty

Product Description

*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Powerful KM186FAGET diesel engine.
*Optional electric starter.
*Low oil pressure alert system shuts down the engine automatically.

Price:£

FEATURES

Strong Power
All generator sets are equipped with KIPOR four-stroke engines.

Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens
exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.

Digital Control Panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time
working data of the generator set such as its output voltage and current etc.
Besides, the running trouble of the generator will also be displayed on the panel.

Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be
restarted only if the oil is refilled.

Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protec-
tion against the overload of the whole set, thus avoid damage to the set.

Advanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design
protects the generator from short circuits and provides a stable output while running
inductive loads.

ATS (Automatic Transfer Switch)
On the inheriting of the original
general-purpose generator set, KIPOR diesel generator sets with digital control panel can be
equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically
check and monitor the running of the genset to ensure the genset in good working
condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency
of the utility power become abnormal, ATS will give commands to start the genset automatically.

Model

KDE6700TA

Rated frequency (Hz)

50     60

Rated output (kVA)

4.5    5.0

Max. output (kVA)

5.0    5.5

Rated Voltage (V)

115/230     120/240

Rated current (A)

39.1/19.6   41.7/20.8

Rated rotation speed (r/min)

3000           3600

Phase NO.

Single phase

Power factor (Cos Φ)

1.0

Insulation Grade

B

Pole number

2

Excitation mode

Self-excitation & constant voltage (AVR)

Panel Type

General Panel

Voltage (V)

115/230 120/240

Receptacle

Two receptacles

Connection pole

Without

DC12V output

DC receptacle output

Overall dimensionL×W×H(mm)

930X535X742

Dry weight(kg)

170

Working assorting weight (Kg)

185

Noise level7mdB(A)

72

Structure type

Silent

Engine Model

KM186FAGET

Engine Type

Single cylinder, vertical, four-stroke, direct injection

Cylinder NO.-bore×stroke (mm)

1-86×72

Displacement (ml)

418

Rated power [KW/(r/min)]

5.7/3000 6.3/3600

Compression ratio

19:1

Rated rotation speed (r/min)

3000 3600

Combustion system

Direct injection

Cooling system

Air cooled

Lubrication system

Pressure splashed

Starting system

Electric starter

Fuel type

0#(summer)-10#(winter)-35#(chillness)diesel

Lube oil brand

CD grade or SAE10W-30,15W-40

Capacity of cooling water (L)

Without

Lube capacity (L)

1.65

Starting motor capacity (V-kW)

12V 0.8kW

Charging generator capacity (V-A)

12V 3A

Battery capacity (V-Ah)

12V 36Ah

Fuel consumption (g/kW.h)

≤360

Fuel tank capacity (L)

15

Continuous running time (hr)

6

KS code Spare Name
Description Price
KS0151 Alternator Assembly KDE6700TA
Alternator Assembly KDE6700TA KDE6700T £354.00
KS0115 Kipor KDE 6700TA PLY50S 10 wire Avr
PLY50S 10 wire Avr £72.00
KS0065 Charge Coils and Magnetic Cup KDE 6700TA
Charge Coils and Magnetic Cup KDE 6700TA £60.00
KS0139 Control Panel KDE6700TA/KDE12STA/KDE19STA
Control Panel MB ATS C2 for KDE6700TA/KDE12STA/KDE19STA £120.00
KS0010 Digital Display Panel KDE6700TA
Digital Display Panel Older Model KDE6700TA £120.00
KS0199 ID6000 Starter Motor
ID6000 Starter Motor £108.00
KS0005 Piston Rings Set of 3 KM186F-04100T
Piston Rings Set of 3 £9.60
KS0013 ATS Controller KPATS100 KPATS26
ATS Controller KPATS100 KPATS26 £90.00
KS0063 Oil Switch KDE3500 KDE6700T KDE6700TA
Oil Switch KDE3500 KDE6700T KDE6700TA £24.00
KS0009 Ignition Switch JK427
Ignition Switch KDE6700T KDE6700TA, KDE6700TA3, KDE12STA KDE12STA3 KDE19STA KDE19STA3 £24.00
KS0002 Fuel Injector
Fuel Injector Complete £48.00
KS0043 Fuel Injection Pump
Fuel Injection Pump £60.00
KS0162 Automatic Transfer Switch for KDE6700T/TA ID RANGE
Automatic Transfer Switch for KDE6700T/TA £394.99
KS0146 Exhaust silencer top for KDE6700T
Exhaust silencer top for KDE6700T £38.59
KS0145 Exhaust Silencer Bottom for KDE6700T
Exhaust Silencer Bottom for KDE6700T £38.59
KS0064 Wirning harness complete for KDE6700TA
Wirning harness complete for KDE6700TA £42.00
KS0044 12 volt charge regulator KDE6700TA
12 volt charge regulator KDE6700TA £30.00
KS0136 TBall ended screw adjuster for the valve clearance(pos.20)KDE6700TA
The screw adjuster for the valve clearance(pos.20)KDE6700TA £4.80
KS0011 KDE 6700TA Crankshaft KM186FAG-05201
Crankshaft £50.40
KS0029 KDE6700TA Air Filter element
Air Filter element KDE6700TA £15.00
KS0060 Silver door catch assembly KDE6700TA
Silver door catch assembly KDE6700TA £12.00
KS0061 Wheels KDE5000T
Wheels KDE5000T £8.40
KS0001 Fuel Injection Pump Timing Shim
Fuel Injection Pump Timing Shim £5.94
KS0059 Big End Shells for KDE6700TA
Big End Shells for KDE6700TA £5.40
KS0066 KDE 6700TA Engine Gasket unit
6700 TA Engine Gasket unit £24.00
KS0003 Rocker Cover Gasket KDE 6700T
Rocker Cover Gasket £5.94
KS0183 Sealing Ring KDE6700T KDE6700TA KDE6700TA3
Sealing Ring KDE6700T KDE6700TA KDE6700TA3 £6.60
SK Spare Parts
Spare Key for Diesel Generator £12.00
KS0173 OIL FILTER FOR KDE6700T
OIL FILTER FOR KDE6700T £13.80
KS0164 6700T Copper headgasket
Copper headgasket £9.54
KS0062 KDE6700TA Carbon brush set
Carbon brush KDE6700TA £15.00
KDE 6700TA Exhaust valve KDE6700TA
Exhaust valve KDE6700TA £14.40
KDE6700TA Inlet Valve KDE6700TA
Inlet valve KDE6700TA £14.40
KS0006 Piston KDE6700TA
Piston £24.00
KS0193 KDe 6700 Exhaust Valve
Exhaust Valve 186 engine KDE 6700 £18.00
KS0228 6700 TA Fuel pump solenoid
KDE 6700TA Injection Pump Solenoid £30.00
