KDE 7000STA DIESEL GENERATOR

Out Of Stock
Price: £1395.00 Including VAT

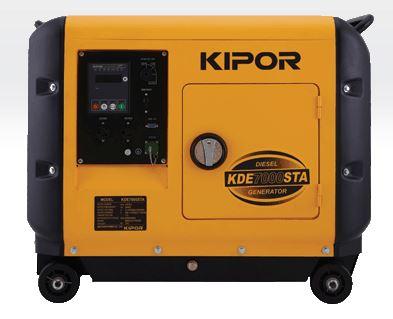

KDE 7000STA DIESEL GENERATOR
Unfortunately this product is out of stock, please contact us to pre-order.
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty

Product Description

New and Improved double skinned soundproofed enclosure makes the Kipor 7000STA super silent!

* Easier and more convenient electric start

* New AVR(Automatic Voltage Regulator) stablizes the output power
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value

FEATURES

Strong power
All generator sets are equipped with KIPOR four-stroke engines.

Low noise running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.

Digital control panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time working data of the generator set such as its output voltage and current etc. Besides, the running trouble of the generator will also be displayed on the panel.

Low oil alarm system
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.

Application of new AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.

Advanced alternator winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.

ATS (Automatic Transfer Switch)
On the inheriting of the original general-purpose generator set, KIPOR diesel generator sets with digital control panel can be equipped with a  made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically check and monitor the running of the genset to ensure the genset in good working condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency of the utility power become abnormal, ATS will give commands to start the genset automatically.

Model

KDE7000STA

Rated frequency (Hz)

50 60

Rated output (kVA)

4.5 5.0

Max. output (kVA)

5.0 5.5

Rated Voltage (V)

115/230 120/240

Rated current (A)

39.2/19.6 41.7/20.8

Rated rotation speed (r/min)

3000 3600

Phase NO.

Single phase

Power factor (Cos Φ)

1.0

Insulation Grade

B

Pole number

2

Excitation mode

Self-excitation & constant voltage (AVR)

Panel Type

General Panel

Voltage (V)

115/230 120/240

Receptacle

Two receptacles

Connection pole

Without

DC12V output

Connection pole output





Dry weight(kg)

170

Working assorting weight (Kg)

185

Noise level7mdB(A)

72

Structure type

Silent

Engine Model

KM186FAGET

Engine Type

Single cylinder, vertical, four-stroke, direct injection

Cylinder NO.-bore×stroke (mm)

1-86×72

Displacement (ml)

418

Rated power [KW/(r/min)]

5.7/3000 6.3/3600

Compression ratio

19:1

Rated rotation speed (r/min)

3000 3600

Combustion system

Direct injection

Cooling system

Air cooled

Lubrication system

Pressure splashed

Starting system

Electric starter

Fuel type

0#(summer)-10#(winter)-35#(chillness)diesel

Lube oil brand

CD grade or SAE10W-30,15W-40

Capacity of cooling water (L)

Without

Lube capacity (L)

1.65

Starting motor capacity (V-kW)

12V 0.8kW

Charging generator capacity (V-A)

12V 3A

Battery capacity (V-Ah)

12V 36Ah

Fuel consumption (g/kW.h)

≤360

Fuel tank capacity (L)

15

Continuous running time (hr)

6



  • ModelKDE7000STA
  • Rated frequency(Hz)50  60
  • Rated output(kVA)4.5 5.5
  • Max.output(kVA)5 5.5
  • Rated voltage(V)230 120/240
  • Rated current(A)39.1/19.6 41.7/20.8
  • Dimension (mm)870×645×710
  • Net weight(kg)170
KS code Spare Name
Description Price
KS0011 KDE 6700TA Crankshaft KM186FAG-05201
Crankshaft £50.40
KS0065 Charge Coils and Magnetic Cup KDE 6700TA
Charge Coils and Magnetic Cup KDE 6700TA £60.00
KP308 Digital Control Panel
KDE 7000 STA Digital Panel £180.00
KS0062 KDE6700TA Carbon brush set
Carbon brush KDE6700TA £15.00
KS0164 6700T Copper headgasket
Copper headgasket £9.54
KDE 6700TA Exhaust valve KDE6700TA
Exhaust valve KDE6700TA £14.40
KDE6700TA Inlet Valve KDE6700TA
Inlet valve KDE6700TA £14.40
KS0006 Piston KDE6700TA
Piston £24.00
KS0205 KDE 7500 Cooling Fan
Cooling fan KDE 7500STA £48.00
KS0193 KDe 6700 Exhaust Valve
Exhaust Valve 186 engine KDE 6700 £18.00
KS0195 ATS Plug for 308 Control Panel
Black STA plug for 308 Panel £21.60
KS0228 6700 TA Fuel pump solenoid
KDE 6700TA Injection Pump Solenoid £30.00
