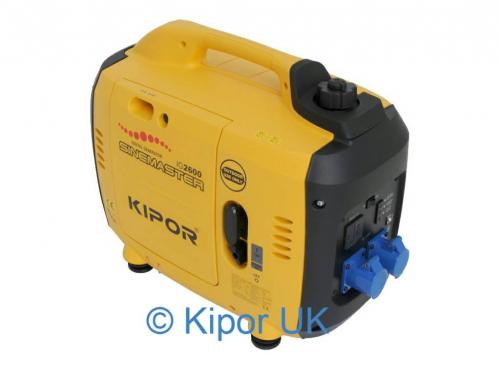

IG2600P Kipor Digital Generator

In Stock
Price: £595.00 Including VAT
Product Description * Max. output power is 2.00kVA * Low noise design, 61 -73 dB(A)/7m * A full tank of fuel can last for 3 constant hours * Advanced inverter technology provides reliable power to computers and other sensitive equipments
Wishlist
FREE Next Day delivery to UK Mainland
  • Features
  • Video(s)
  • Spares
  • Reviews
  • Delivery
  • Warranty

Product Description

Max Output : 2600w

Rated Output: 2300w

Rated Voltage: 230V

Rated frequency: 50Hz

Fuel Tank Capacity: 5 litres

Running time: Approx 3 hrs

Dimensions: L = 565 x W = 320 x H = 465 mm



Key Features

1 year full parts and labour warranty on domestic use.

2600w maximum output for larger appliances like microwaves and hairdryers.

Super quiet at only 65dBa at 7 metres

Lightweight at only 29.5 kg.

12V 8A dc output for charging batteries

Inverter technology for clean, stable power and improved efficiency.

4 stroke OHV Engine.



 What will it run?

This is the biggest model in our suitcase range, and will give you maximum continual power of 2300 watts. This also comes as standard with a parallel connection socket which would allow you to connect two or more parallel configured Kipor generators together. This feature would allow you to connect even miss-matched generators together, ideal for when you want to run high load devices that are only occasionally required. This feature is also ideal for automotive sport applications allowing you to power small compressors or pressure washers and other power tools using machines which would normally be too small.



In typical caravan use this will be able to charge up your leisure battery your mobile phones and lap tops and most other tablet devices. This is ideal to power your microwave and also the “good ladies” hair drier. It would also allow you to use an air conditioning unit, or a home size kettle but with these larger applications care must be taken to use them individually so as not to overload the generator,



With this machine your caravan battery will charge in the same time as if connected to the hook up on site or at home,  its the battery charger in you caravan that determines the recharge time, not the size of the generator. Also a quick tip, if you are looking to watch TV, use your leisure battery through the evening and re charge the battery in the day time. This way will be quieter during the evening hours and you will run the generator for fewer hours in the morning using  less fuel and keeping the running hours low.



A full tank would normally last about 4 hours on a full load, but will typically run for 5 to 6 hours in normal use, the machine also comes with integral overload protection, so if you accidentally overload the machine it will automatically cut out, this ensures that you do accidentally damage any of the components but it is a fail-safe device and should not be relied on in day to day use. TAKE CARE and ensure you only connect loads suitable for this machine.



So as I said, this is the largest  machine in the suitcase range, it will run microwaves, kettles and will power up air conditioning units  or compressors. It will happily power up the tyre warmers in motor sport activities. Our model IG2600H has exactly the same power output but also comes with a pull out, suitcase style, tow behind handle and wheel kit making moving the machine an absolute doddle.



If you have a power-cut at home the IG 2600 would be suitable to back up your fridge and freezer and provide the power to run the central heating and still have enough in reserve to provide lighting and still watch TV as well. You need to make provision for how you would connect to your property in the event of a power cut. The only recommended method is to have a manual transfer switch fitted by a registered electrician. In this way the house can be isolated from the National Grid during the power cut allowing the generator to be safely used. When the power is restored simply switch back to the national grid and turn off and store the generator.



If you are   using  this IG2600 on a boat, this will run your main lights and also charge your battery, it will be useful in the galley to power the microwave or fridge and will power up most domestic washing machines. It will be able to provide power to  your Victron or Sterling inverter  unit allowing them to charge your batteries at up to 80 amps. Care needs to be taken while charging batteries to make sure you do not take extra power through your ring main which could lead to overloading of this machine.



So overall our  largest suitcase machine seen by many people as the idea travelling companion in most caravanning  , boating  or motor sport activities that can be supplied with a handle and wheel kit to make moving the machine so much easier. This machine will also provide a good level of support for home use during power failures.

Ready to use right out of the box.

All you have to do is fill it with fuel and oil and it is ready to go.



Lightweight & Compact

Ergonomically designed and lightweight to make it easy and comfortable to carry. Extra wide filler cap for spill free refuelling.



Pure Power

Inverter Technology to provide stable, pure Sine Wave 240V output, safe for all of today’s electronic devices including sensitive equipment.



Efficiency

Smart throttle technology ensures that the engine will run to the lowest engine speed required for the power that you are using.

This adds to the fuel economy and reduces the noise during use.



Simplicity

Quick and simple starting and running. A low oil sensor will stop the generator running and prevent damage if the oil level falls too low.

Rubber feet provide a sturdy platform and minimise vibration.



Parallel Operation

Kipor suitcase generators come with a parallel connection as standard.



This allows you to join miss-matched sizes of generators together and allows you to run at 80% of the combined output of the two machines.



Model

IG2600

Rated frequency (Hz)

50 60

Rated voltage(V)

230 120/240

Rated current(A)

10 19.2/9.6

Rated speed (r/min)

3600

Rated output (kVA)

2.3

Max. output (kVA)

2.6

DC output

12V-5.0A

Phase number

Single

Current breaker

N/A

Structure type

Portable, silent

Fuel capacity(L)

5

Set fuel consumption(g/kW.h)

500

Continous running time(hr)(rated output)

3.0

Noise level(zero load-full load)dB(A)/7m

58-65

Overall dimensionL×W×Hmm

565X320X465

Net weight(kg)

29.5

Starting system

Recoil starter

Fuel type

Automotive unleaded gasoline

Lube oil brand

CD grade or SAE10W-30,15W-40

Engine Model

KG166

Engine Type

Single cylinder, four-stroke, OHC,vertical

Bore×stroke (mm)

66×50

Displacement (ml)

171

Compression ratio

8.5:1

Rated power[Kw(r/min)]

3.3/3600

Ignition system

T.C.I

Spark plug

WR7DC

Lowest fuel consumption(g/kW.h)

395





KS code Spare Name
Description Price
KS0133 New Parallel inverter panel IG2600
New Parallel inverter panel IG2600 £270.00
KS0023 Fuel Pumps IG2600,IG2000,IG1000
Fuel Pumps IG2600,IG2000,IG1000 £30.00
KS0026 Suitcase Generator Fuel Taps
Suitcase Fuel Taps £30.00
KS0101 IG2600 Base Plate
IG2600 Base Plate £36.00
KS0042 IG2600 Pull Start IG2600
IG2600 Pull Start IG2600 £24.00
KS0154 IG2600 Case Set IG2600
IG2600 Case Set IG2600 £43.20
KS0036 IG2000/IG2600 Fuel pipe
IG2000/IG2600 Fuel pipe \"S\" shaped £4.80
KS0052 IG2600 Fuel Pipe - tank to tap
IG2600 Fuel Pipe set(Ⅰ,Ⅱ,Ⅲ) £4.80
KS0053 IG2600 Fuel Pipe - pump to carb
IG2600 Fuel Pipe set(Ⅰ,Ⅱ,Ⅲ) £4.80
KS0030 Carburettor complete with stepper motor IG2600
Carburettor complete with stepper motor IG2600 £42.00
KS0022 IG2600 Label Set
Label sets IG2600 £7.80
KS0072 PARALLEL CABLE FOR IG2600
PARALLEL CABLE FOR IG2600 £65.00
KS0031 Ignition trigger IG2600
Ignition trigger IG2600 £26.40
KS0032 Pull cord guide plate all suitcase machines
Pull cord guide plate £4.80
KS0049 Choke Lever IG2600
Choke Lever IG2600 £5.40
KS0025 IG2600 Ignition Controller IG2600
IG2600 Ignition Controller IG2600 £30.00
KS0027 Ignition coils With Short Wire
Ignition coils £29.94
KS0179 12v Charging Socket
12V Charging Socket £15.00
KS0240 IG2600 Alternator
Alternator for IG2600 £85.00
KS0241 12V Charging Lead
12v Charging Lead £15.00
KS0054 IG1000 Fuel pipe
IG1000 Fuel pipe pump to tap \"S\" pipe £4.80
IG2600 Cam Shaft
Cam shaft for IG2600 Suitcase Generator £48.00
