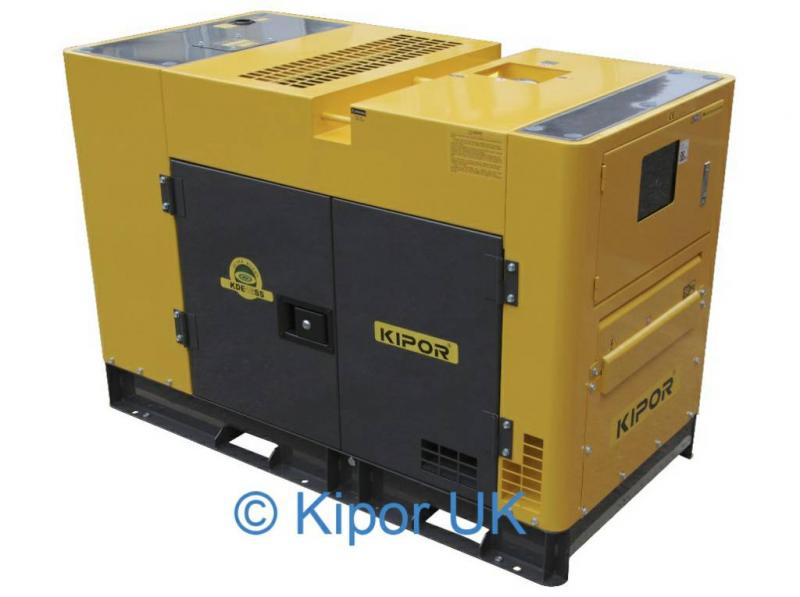

KDE 16SS Inc Auto Transfer Switch

In Stock
Price: £5495.00 Including VAT
Better performance Automatic switching over Ultra-silent running Integrated control system Safer power for sensitive equipments
Wishlist
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty


Product Description

* Better performance
* Automatic switching over
* Ultra-silent running
* Integrated control system
* Safer power for sensitive equipments

FEATURES

More Powerful Performance
KIPOR exclusive technology provides greater motor starting capability for large loads such as central air conditioners while still running other home appliances and electronics.

Automatic, Hands-off Operation
In the event of a utility power outage, automatically the generator automatically starts to restore power to the home, whether you're home or away. Digital Electronic IsoChronous Governor

Safer Power for Sensitive Electronics
KIPOR residential generators protect all of your valuable appliances and sophisticated electronics with cleaner, safe and stable power Digital Voltage Regulator

Easier Service and Installation
KIPOR new easy-connection terminal block provides faster, flexible installations. LED Display Provides Diagnostic Capability

Quieter Operation
Sound enclosure maintains neighborhood solitude whether you are in self-test or full operation mode

Meets Environmental
Protection Agency (EPA) nonstationary unit requirements

Faster Response
While many competitive products can leave you in the dark for 25 seconds or more during an outage, KIPOR generators restore power in as little as 10 seconds.
•Advanced Digital Control
•More sophisticated diagnostic self-test

Model

KDE16SS

Rated frequency(Hz)

50 60

Rated output(kW)

13 15.5

Max.output(kVA)

14 17

Rated voltage(V)

115/230 120/240

Rated current(A)

113/56.5 129.2/64.6

Rated speed(r/min)

1500 1800

Generator model

KF16

Pole No.

4

Loop mode

Single-phase, three-loop

Excitation mode

Brushless self-excitation and constant voltage(AVR)

Power factor(cosΦ)

1.0

Insulation grade

H

Engine model

KD488G

Engine type

Four-cylinder, in-lined, four-stroke, direct injection, water-cooled

BoreXstroke(mm)

88X90

Total displacement(L)

2.19

Compression ratio

18.2:1

Rated power(kW)

16.4 19.6

Cooling water capacity(engine)(L)

6

Radiator tank(L)

3.7

Lubricating system

Pressure splashed

Lube oil brand

SAE10W-30,15W-40(above CD grade)

Lube oil capacity(L)

8.5

Starting system

12V Electric starter

Starting motor capacity(V-kW)

12V 1.4kW

Charging generator capacity(V-A)

12V 15A

Battery capacityXNo.(V-Ah)

12V 65AhX1

Fuel type

0#(summer), -10#(winter),-35#(chillness)diesel

Fuel consumption(g/kW.h)

≤320

Panel type

Digital panel

Output voltage(V)

115/230 120/240

Receptacle

Two single-phase receptacles

Connection pole

Available

Noise level(zero load-full load)[dB(A)/7m]

51 53

Structure type

Ultra silent

Fuel tank capacity(L)

65

Continous running time(hr)

10.5 9

Overall dimension(LXWXH)(mm)

1570X780X1050

Dry weight(kg)

720

KS code Spare Name
Description Price
KS0092 Water Pump KDE11SS/16SS
Water Pump KDE11SS/16SS £72.00
KS0123 12 volt alternator KDE11SS/KDE16SS
12 volt alternator KDE11SS/KDE16SS £102.00
KS0114 Air Filter Elements 11SS 16SS 25SS
Air Filter Elements 11SS 16SS 25SS £12.50
KS0090 Starter Motor KDE11SS/KDE16SS
Starter Motor KDE11SS/KDE16SS £192.00
KS0097 Oil Filters 11SS 16SS 20SS
Oil Filters 11SS 16SS 20SS £18.00
KS0124 Fuel& Water filter/ Seperator KDE19STA KDE11SS KDE16SS KDE20SS3
Oil & Water Seperator KDE19STA KDE11SS KDE16SS KDE20SS3 £24.00
KS0127 Fuel Filter KDE11SS KDE16SS KDE20SS3 KDE25SS
Fuel Filter KDE11SS KDE16SS KDE20SS3 KDE25SS £21.60
KS0111 Fuel Injectors KDE16SS/KDE20SS
Fuel Injectors KDE16SS/KDE20SS £38.40
KS0093 Charging Alternator KDE11SS
Charging Alternator KDE11SS £72.00
KS0202 Piston assembly KDE12STA
Piston assembly KDE12STA £60.00
KS0075 Engine Gasket Unit
Engine Gasket Unit £60.00
KS0203 KPEC ATS DIGITAL PANEL
KPEC ATS DIGITAL PANEL £216.00
KDE 11SS 11SS/16SS Piston Rings
Piston Rings for Kipor 11SS/16SS £18.00
KDE 11SS KDE 11SS Door Catch
Side door catch 11SS £24.00
KS0227 11SS/16SS/20SS3 Service Kit
11SS/16SS/20SS3 Service Kit £60.00
KS0242 11SS Big End Shells
Big End Shells for 11SS £6.00
KS0177 11SS/16SS Fuel Pump Solenoid
Fuel Pump Solenoid for Kipor 11SS/16SS £126.00
KS0190 SS Generator door catch
SS Generator door catch £24.00
KS0172 KDE 11SS KDE16SS Piston Rings
KDE 11SS, KDE20SS3 & KDE 16SS piston Rings for 388 Engine £18.00
KS0080 KDE 16SS Fuel Injection Pump
KDE 16SS Fuel Injection Pump £360.00


Reviews


No Reviews available!

Was this Product to your satisfaction

Review Title

Please rate this buying experience!


Rating

.   Excellent
.   Good
.   Average
.   Below Average
.   Poor


Rate Below Statements

The item represents excellent value for money  Agree   Disagree
Transaction was smooth and efficient  Agree   Disagree


Review

What do you like, love, or dislike about it? Why did you decide to buy it?

Name Email

All generators are shipped out for next day delivery if ordered before 2pm.

We make sure that all generators are ready to run as soon as you recieve them.

Our engineers prior to despatch run and check all conponents so that when you recieve your generator it is ready to go.

All you have to do is put fuel and oil and you are ready to go.

At Kipor we offer you a full 1 year warranty or first 500 hours.

Once you recieve your generator simply fill out the warranty card or do it here online.

Once your warranty is activated you can be assured peace of mind should you ever need our assistance.

Should we need to collect your generator.

We collect

We fix, parts and labour included

We deliver back to you.

At no cost to you.

All part of the Kipor support and service commitment.
