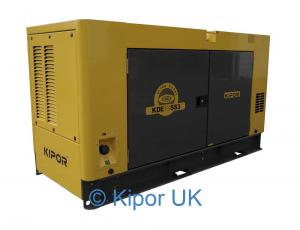

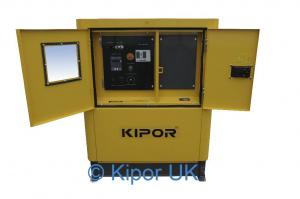

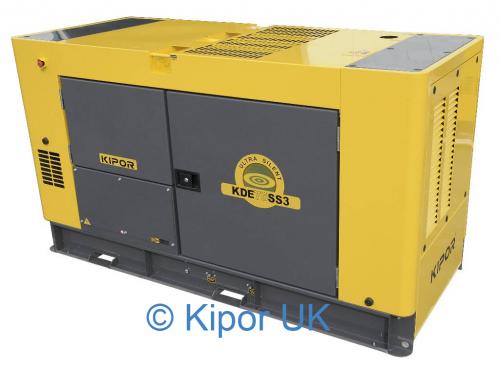

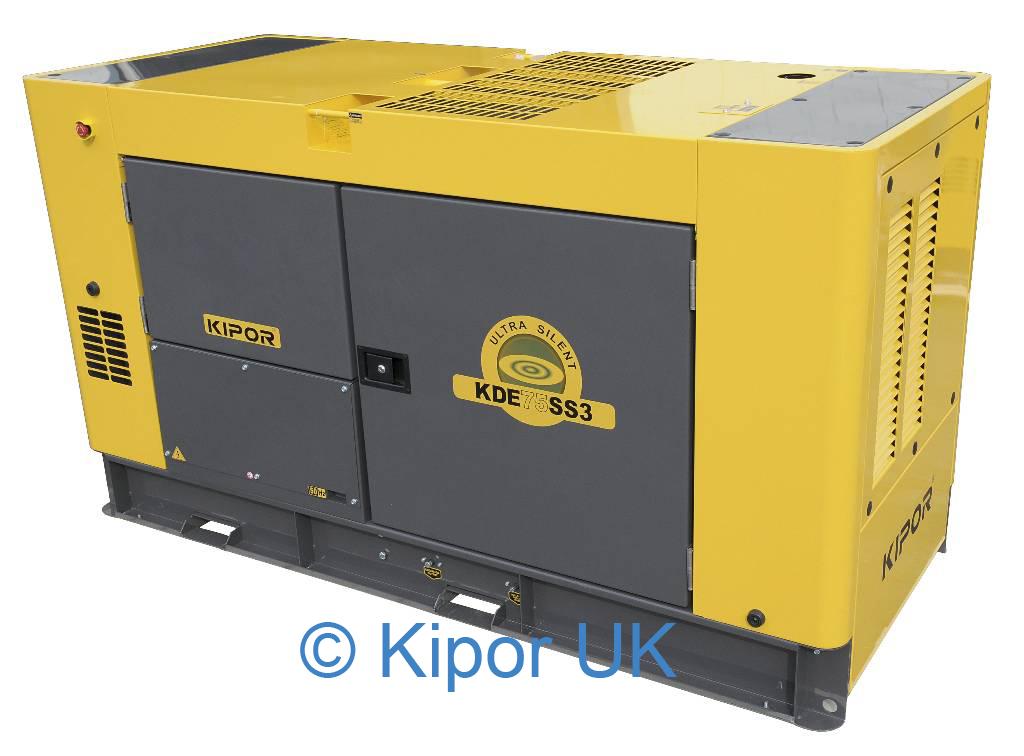

KDE75SS3 Inc Auto Transfer Switch

Out Of Stock
Price: £12450.00 Including VAT
KDE75SS3 Inc Auto Transfer Switch
Unfortunately this product is out of stock, please contact us to pre-order.
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty

Model KDE75SS3 Rated frequency(Hz) 50 60 Rated output(kVA) 62 75 Max.output(kVA) 66 80 Rated voltage(V) 230/400 240/416 Rated current(A) 89.5 104 Rated speed(r/min) 1500 1800 Generator model KFS70 Pole No. 4 Loop mode Three-phase, four-line, Y-connection Excitation mode Brushless self-excitation and constant voltage(AVR) Power factor(cosΦ) 0.8(lag) Insulation grade H Engine model KD6105G Engine type Six-cylinder, in-lined, four-stroke, direct injection, water-cooled BoreXstroke(mm) 105X125 Total displacement(L) 6.494 Compression ratio 17.5:1 Rated power(kW) 59 70 Cooling water capacity(engine)(L) 45 Radiator tank(L) 12 Lubricating system Pressure splashed Lube oil brand SAE10W-30,15W-40(above CD grade) Lube oil capacity(L) 18.5 Starting system 24V Electric starter Starting motor capacity(V-kW) 24V 4.5kW Charging generator capacity(V-A) 28V 35A Battery capacityXNo.(V-Ah) 12V 120AhX2 Fuel type 0#(summer), -10#(winter),-35#(chillness)diesel Fuel consumption(g/kW.h) ≤290 Panel type Digital panel Output voltage(V) 400/230 416/240 Receptacle Two single-phase receptacles Connection pole Available Noise level(zero load-full load)[dB(A)/7m] 51 53 Structure type Ultra silent Fuel tank capacity (L) 110 Continous running time(hr) 5.5 4.5 Overall dimension(LXWXH)(mm) 2700X1140X1500 Dry weight(kg) 3760 More Powerful Performance KIPOR exclusive technology provides greater motor starting capability for large loads such as central air conditioners while still running other home appliances and electronics. Automatic, Hands-off Operation In the event of a utility power outage, automatically the generator automatically starts to restore power to the home, whether you're home or away. Digital Electronic IsoChronous Governor Safer Power for Sensitive Electronics KIPOR residential generators protect all of your valuable appliances and sophisticated electronics with cleaner, safe and stable power Digital Voltage Regulator Easier Service and Installation KIPOR new easy-connection terminal block provides faster, flexible installations. LED Display Provides Diagnostic Capability Quieter Operation Sound enclosure maintains neighborhood solitude whether you are in self-test or full operation mode Meets Environmental Protection Agency (EPA) nonstationary unit requirements Faster Response While many competitive products can leave you in the dark for 25 seconds or more during an outage, KIPOR generators restore power in as little as 10 seconds. •Advanced Digital Control •More sophisticated diagnostic self-test

KS code Spare Name
Description Price
KS0069 24V Fuel gauge sender / float (in tank) KDE75SS3
24V Fuel gauge sender / float (in tank) KDE45SS3 £29.94


Reviews


No Reviews available!

Was this Product to your satisfaction

Review Title

Please rate this buying experience!


Rating

.   Excellent
.   Good
.   Average
.   Below Average
.   Poor


Rate Below Statements

The item represents excellent value for money  Agree   Disagree
Transaction was smooth and efficient  Agree   Disagree


Review

What do you like, love, or dislike about it? Why did you decide to buy it?

Name Email

All generators are shipped out for next day delivery if ordered before 2pm.

We make sure that all generators are ready to run as soon as you recieve them.

Our engineers prior to despatch run and check all conponents so that when you recieve your generator it is ready to go.

All you have to do is put fuel and oil and you are ready to go.

At Kipor we offer you a full 1 year warranty or first 500 hours.

Once you recieve your generator simply fill out the warranty card or do it here online.

Once your warranty is activated you can be assured peace of mind should you ever need our assistance.

Should we need to collect your generator.

We collect

We fix, parts and labour included

We deliver back to you.

At no cost to you.

All part of the Kipor support and service commitment.
