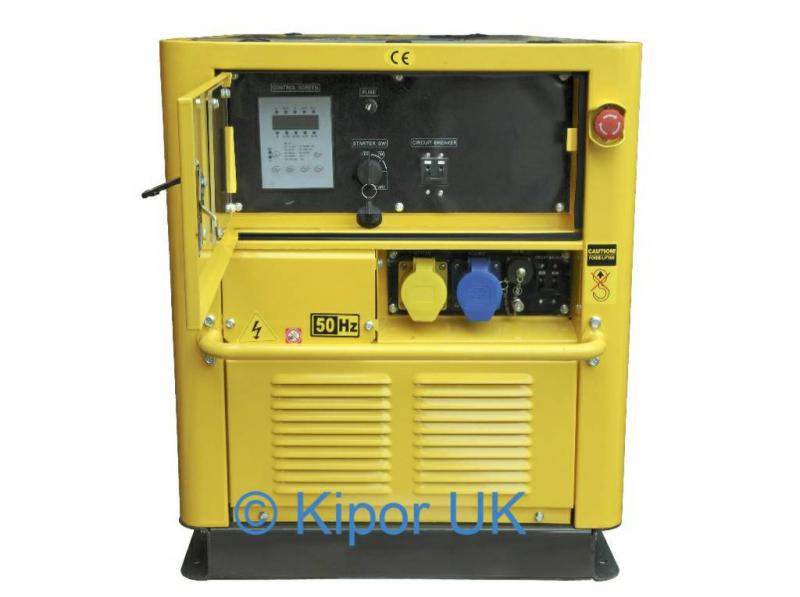

KDE 12STA

Out Of Stock
Price: £2495.00 Including VAT
This machine is only suitable for stand by power not continuous use, .Enclosed design Easier and more convenient electric starter New AVR(Automatic Voltage Regulator) stablizes the output power Low oil level alarming system will automatically stop the generator when lube oil is less than the set value
Unfortunately this product is out of stock, please contact us to pre-order.
FREE Next Day delivery to UK Mainland
  • Features
  • Spares
  • Reviews
  • Delivery
  • Warranty

This machine is only suitable for stand by power not continuous use



Product Description

* Ultra silent design
* Easier and more convenient electric starter
* New AVR(Automatic Voltage Regulator) stablizes the output power
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value

FEATURES

Strong Power
All generator sets are equipped with KIPOR four-stroke engines.

Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.

Digital Control Panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time working data of the generator set such as its output voltage and current etc.
Besides, the running trouble of the generator will also be displayed on the panel.

Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.

Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.

Advanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.

ATS (Automatic Transfer Switch)
On the inheriting of the original general-purpose generator set, KIPOR diesel generator sets with digital control panel can be equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically check and monitor the running of the genset to ensure the genset in good working condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency of the utility power become abnormal, ATS will give commands to start the genset automatically.

Model

KDE12STA

Rated frequency (Hz)

50 60

Rated output (kVA)

8.5 9.5

Max. output (kVA)

9.5 10.5

Rated Voltage (V)

115/230 120/240

Rated current (A)

73.9/37 79.2/39.6

Rated rotation speed (r/min)

3000 3600

Phase NO.

Single phase

Power factor (Cos Φ)

1.0

Insulation Grade

B

Pole number

2

Excitation mode

Self-excitation & constant voltage (AV R)

Panel Type

Digital Panel

Voltage (V)

115/230 120/240

Receptacle

Two receptacles

Connection pole

With

DC12V output

Without

Overall dimensionL×W×H(mm)

1350X795X850 1350X650X760(without wheels)

Dry weight(kg)

310

Working assorting weight (Kg)

345

Noise level7mdB(A)

72

Structure type

Super Silent

Engine Model

KM2V80G

Engine Type

Two-cylinder, v-twin, water-cooled, four-stroke, swirl chamber

Cylinder NO.-bore×stroke (mm)

2-80×79

Displacement (ml)

794

Rated power [KW/(r/min)]

12.5/3000 14.5/3600

Compression ratio

23:1

Rated rotation speed (r/min)

3000 3600

Combustion system

Cooling system

Water cooled

Lubrication system

Pressure splashed

Starting system

Electric starter

Fuel type

0#(summer)-10#(winter)-35#(chillness)diesel

Lube oil brand

CD grade or SAE10W-30,15W-40

Capacity of cooling water (L)

Without

Lube capacity (L)

2.27

Starting motor capacity (V-kW)

12V 1.4kW

Charging generator capacity (V-A)

12V 20A

Battery capacity (V-Ah)

12V 36Ah

Fuel consumption (g/kW.h)

≤340

Fuel tank capacity (L)

26

Continuous running time (hr)

7

KS code Spare Name
Description Price
KS0152 Alternator Assembly KDE12STA
Alternator Assembly KDE12STA £450.00
KS0023 Fuel Pumps IG2600,IG2000,IG1000
Fuel Pumps IG2600,IG2000,IG1000 £30.00
KS0082 PLY95S AVR 12STA
PLY95S AVR 12STA £120.00
KS0139 Control Panel KDE6700TA/KDE12STA/KDE19STA
Control Panel MB ATS C2 for KDE6700TA/KDE12STA/KDE19STA £120.00
KS0142 19STA 19STA3 12STA 12STA3 Carbon Brush Set
Replacement Brushes 19STA 19STA3 12STA 12STA3 £24.00
KS0077 Injectors KDE12STA KDE12STA3
Injectors KDE12STA KDE12STA3 £42.00
KS0063 Oil Switch KDE3500 KDE6700T KDE6700TA
Oil Switch KDE3500 KDE6700T KDE6700TA £24.00
KS0095 Stop Solenoid KDE12STA KDE12STA3
Stop Solenoid KDE12STA KDE12STA3 £84.00
KS0216 Glow Plug KDE12STA KDE12STA3
Glow Plug KDE12STA KDE12STA3 £19.20
KS0105 Electric Lift Pump KDE12STA KDE19STA
Electric Lift Pump KDE12STA KDE19STA £48.00
KS0118 Injecton Pump KDE12STA KDE12STA3
Injecton Pump KDE12STA KDE12STA3 £210.00
KDE12 STA and KDE 12 12 STA oil pump drive wheel
Plastic drive wheel for 12 STA oil pump £12.00
KS0084 Piston KDE12STA KDE12STA3
Piston KDE12STA KDE12STA3 £24.00
KS0089 Big End Bearing KDE12STA 2pc
Crank Bearing KDE12STA 2pc £7.20
KS0083 Air Filter for KDE12STA
Air Filter for KDE12STA £21.60
KS0094 Head Gasket KDE12STA
Head Gasket KDE12STA £12.00
KS0215 Digital Display Panel Older Models KDE12STA KDE 19STA
Digital Display Panel Older KDE19STA KDE12STA £120.00
KS0119 Cylinder head Left Hand KDE12STA
Cylinder head assembly Left Hand complete KDE12STA £72.00
KS0103 Cylinder head Right Hand KDE12STA
Cylinder head assembly Right Hand complete KDE12STA £72.00
KS0102 Bush set KDE12STA
Bush set KDE12STA £12.00
KS0116 Starter Motor KDE12STA
Starter Motor KDE12STA £160.00
KS0117 Rings complete KDE12STA
Rings complete KDE12STA £12.00
KS0147 Engine block KDE12STA
Engine block KDE12STA £358.80
KS0159 Auto Transfer Switch to fit KDE12STA
Auto Transfer Switch to fit KDE12STA £595.00
KS0125 Crank shaft KDE12STA
Crank shaft KDE12STA £120.00
KS0202 Piston assembly KDE12STA
Piston assembly KDE12STA £60.00
KS0013 ATS Controller KPATS100 KPATS26
ATS Controller KPATS100 KPATS26 £90.00
KS0009 Ignition Switch JK427
Ignition Switch KDE6700T KDE6700TA, KDE6700TA3, KDE12STA KDE12STA3 KDE19STA KDE19STA3 £24.00
KS0112 KDE12STA Engine Gasket Unit
12 STA Engine Gasket unit £33.60
KS0044 12 volt charge regulator KDE6700TA
12 volt charge regulator KDE6700TA £30.00
KS0204 Digital control panel new KDE12STA KDE19STA
Digital control panel new KDE12STA KDE19STA £180.00
KS0236 12STA Oil Pump
12STA Oil Pump £42.00
KS0217 12STA Radiator
12STA Radiator £168.00
KS0219 12STA Charge Coils
Charge Coils for 12STA £72.00
KS0225 12STA Service Kit
12STA Service Kit £30.00
KS0237 12STA Water Pumps
12sta water pump £40.00
KS102 Emergency Stop
Emergency stop push switch £24.00
KS0242 KDE 19 STA Oil Filter
Oil filter for KDE 19 STA and KDE 12 STA £18.00


Reviews


No Reviews available!

Was this Product to your satisfaction

Review Title

Please rate this buying experience!


Rating

.   Excellent
.   Good
.   Average
.   Below Average
.   Poor


Rate Below Statements

The item represents excellent value for money  Agree   Disagree
Transaction was smooth and efficient  Agree   Disagree


Review

What do you like, love, or dislike about it? Why did you decide to buy it?

Name Email

All generators are shipped out for next day delivery if ordered before 2pm.

We make sure that all generators are ready to run as soon as you recieve them.

Our engineers prior to despatch run and check all conponents so that when you recieve your generator it is ready to go.

All you have to do is put fuel and oil and you are ready to go.

At Kipor we offer you a full 1 year warranty or first 500 hours.

Once you recieve your generator simply fill out the warranty card or do it here online.

Once your warranty is activated you can be assured peace of mind should you ever need our assistance.

Should we need to collect your generator.

We collect

We fix, parts and labour included

We deliver back to you.

At no cost to you.

All part of the Kipor support and service commitment.
